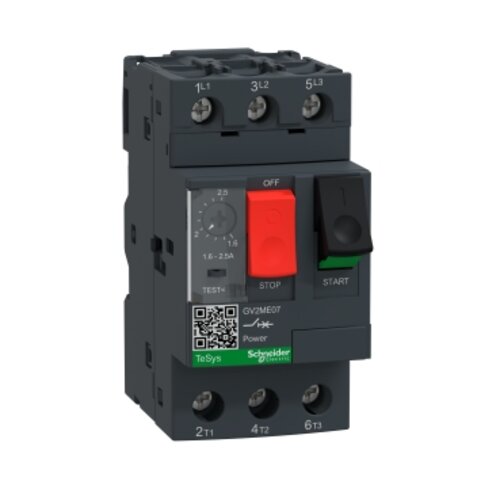

Name: GV2ME07 SCHNEIDER
Brand: Schneider
Price: 34.67 INR
Availability: InStock

GV2ME07 SCHNEIDER

No reviews yet 0 Orders 0 Wish Listed

Overview
Reviews

Product Overview

Range	TeSys Deca
Product name	TeSys GV2
Product name	TeSys Deca
Product or component type	Motor circuit breaker
Device short name	GV2ME
Device application	Motor protection
Trip unit technology	Thermal-magnetic
Complementary
Poles description	3P
Network type	AC
Utilisation category	Category A conforming to IEC 60947-2
Utilisation category	AC-3 conforming to IEC 60947-4-1
Network frequency	50/60 Hz conforming to IEC 60947-4-1
Fixing mode	35 mm symmetrical DIN rail: clipped
Fixing mode	Panel: screwed (with adaptor plate)
Motor power kW	0.75 kW at 400/415 V AC 50/60 Hz
	1.1 kW at 500 V AC 50/60 Hz
	1.5 kW at 690 V AC 50/60 Hz
Breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
	100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
	100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
	100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
	3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
	100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
	100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
	100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
	75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type	Push-button
[In] rated current	2.5 A
Thermal protection adjustment range	1.6…2.5 A conforming to IEC 60947-4-1
Magnetic tripping current	33.5 A
[Ith] conventional free air thermal current	2.5 A conforming to IEC 60947-4-1
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Phase failure sensitivity	Yes conforming to IEC 60947-4-1
Suitability for isolation	Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole	2.5 W
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3 at 415 V In
Rated duty	Continuous conforming to IEC 60947-4-1
Tightening torque	1.7 N.m - on screw clamp terminal
Width	45 mm
Height	89 mm
Depth	78.5 mm
Net weight	0.26 kg
Colour	Dark grey
Environment
Standards	EN/IEC 60947-2
Standards	EN/IEC 60947-4-1
Product certifications	CCC
	UL
	CSA
	EAC
	ATEX
	LROS (Lloyds register of shipping)
	BV
	RINA
	DNV-GL
	UKCA
IK degree of protection	IK04
IP degree of protection	IP20 conforming to IEC 60529
Climatic withstand	Conforming to IACS E10
Ambient air temperature for storage	-40…80 °C
Fire resistance	960 °C conforming to IEC 60695-2-11
Ambient air temperature for operation	-20…60 °C
Mechanical robustness	Shocks: 30 Gn for 11 ms
Mechanical robustness	Vibrations: 5 Gn, 5...150 Hz
Operating altitude	2000 m

Technical Specifications

Specification	Value
Brand	Schneider
Unit	pc
Minimum Order Quantity	1

For Complete Datasheets And Additional Specifications Please Request A Quotation.
