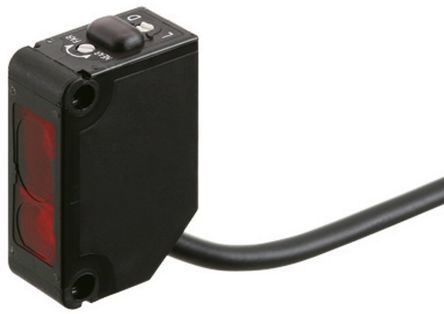

Product Overview
| Sensing Mode |
Background/Foreground Suppression |
| Light Source |
Red LED |
| Sensing Range |
20mm to 100mm |
| Output Details |
1 each NPN |
| Construction |
PBT enclosure, Acrylic lens |
| IP/Nema Rating Details |
IP67 |
| Item Weight |
1.00 lbs per EA |
| Sensor Body Type |
Compact Rectangular Plastic |
| Sensor Features |
Potentiometer adjustment, ø9mm beam spot with 2% or less hysterisis. 0.2mm repeatability perpendicular to sensing axix |
| Supply Voltage Details |
12 to 24VDC |
| Output |
NPN |
| Output Mode |
Light-On/Dark-On selectable |
| Temperature |
-25º to +55º C |
| Connection Detail |
Cable 2m |
Technical Specifications
| Specification |
Value |
| Brand |
PANASONIC |
| Unit |
pc |
| Minimum Order Quantity |
1 |
For Complete Datasheets And Additional Specifications Please Request A Quotation.
